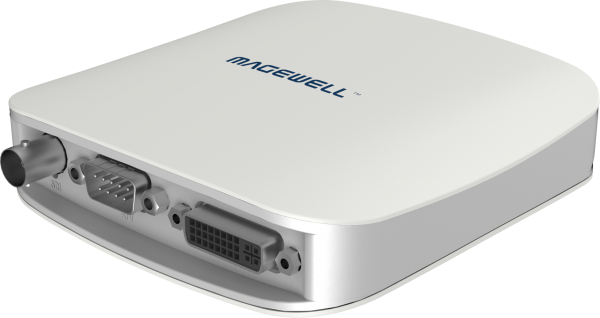

XI100XUSB-PRO PnP

XI100XUSB-PRO PnP
Dieser Artikel steht derzeit nicht zur Verfügung!
653,08 € * inkl.MwSt.
548,81 € ohne MwSt.

inkl.19% MwSt.zzgl. Versandkosten

Lieferzeit -- Werktage

Lieber Kunde, wir befinden uns vom 22.12.2017 bis einschließlich 05.01.2017 im Betriebsurlaub. Ihre Bestellungen werden ab Montag, den 8. Januar wieder umgehend bearbeitet.
  • 302444
  USB 3.0 Interface XI100XUSB-PRO PnP supports UVC protocol, which enables... mehr
Produktinformationen "XI100XUSB-PRO PnP"

XI100XUSB-PRO-pnp



USB 3.0 InterfaceUSB-3-0-Interface-XI100XUSB-pnp

XI100XUSB-PRO PnP supports UVC protocol, which enables Plug-and-Play on Windows, Linux and Mac OS X.

Its actual data transmission rate is up to 390 MB/S.



Various-HD-and-SD-inputs-XI100XUSB-pnp

Various HD and SD inputs

By XI100XUSB-PRO (PnP), you can capture various kinds of SD and HD video, including SDI (3G/HD/SD) , HD inputs such as DVI, HDMI and analog inputs such as VGA and YPbPr. You can also connect to SD devices to capture S-video, CVBS and so on. You can capture nearly all the inputs by just using one XI100XUSB-PRO capture box.





Professional Video Processing

With FPGA on the board, XI100XUSB-PRO (PnP) has powerful image control ability. The following work are fully done by FPGA causing zero CPU usage, including scaling or clipping the high-quality input, or converting its color space, removing the black edges, automatically detecting the interlaced video source and de-interlacing it.

Professional-Video-Processing-XI100XUSB-pnp

Endless pursuit of clarityEndless-pursuit-of-clarity-XI100XUSB-pnp

Teeth may appear in image in fast motion in interlaced videos. XI100XUSB-PRO (PnP) automatically selects the suitable deinterlacing method, which is either line filtering or single field deinterlacing, so that sharpness and clarity of the image are improved.

XI100XUSB-PRO (PnP) offers auto phase-correction function to handle VGA videos. As a result, the words in captured videos have sharper edges and are much more legible.



Accurate-Image-Color-XI100XUSB-pnp

Accurate Image Color

XI100XUSB-PRO (PnP) uses a new video processing pipeline which is able to process videos with color space being both RGB and YUV. Depending on the setting of the input and output, it minimize the conversion between RGB to avoid color loss in YUV videos as much as possible. Currently, the new pipeline can process four different color spaces including YUV601, YUV709, Studio RGB and Computer RGB.





Multiple-Types-of-Outputs-XI100XUSB-pnp

Multiple Types of Outputs

XI100XUSB-PRO (Pnp) supports the following output settings:

  • YUY2:4:2:2 packed format. 16 bits/pixel
  • NV12:4:2:0 planar format, 12 bits/pixel, suitable for GPU encoders
  • I420:4:2:0 planar format,12 bits/pixel, suitable for software encoders
  • RGB24:4:4:4 format ,24 bits/pixel



Compatibility-with-more-software-and-systems-XI100XUSB-pnp

Compatibility with more software and systems

It adopts standard development interface and is based on audio and video capture interface of DirectShow Filter and audio capture interface of DirectSound. It is based on IKsPropertySet expansion interface and it’s compatible with more software, like Windows Media Encoder, Adobe Flash Media Live Encoder, Real Producer Plus, VideoLAN for Windows.

XI100XUSB-PRO (PnP) can run stably on Windows and Linux. In addition, it is perfectly compatible with Mac OS X.



Firmware-update-XI100XUSB-pnp

Firmware Update

You can update Magewell processing engines by firmware and driver update without replacing the hardware. It can achieve the result of hardware update even if the chips remain unchanged. If you purchased an XI100XUSB-PRO before XI100XUSB-PRO (PnP) has been launched, you can download the new firmware by yourself from Download page and update to PnP version. Similarly, you can download the firmware for XI100XUSB-PRO to downgrade.



Video-Eingang: CVBS, DVI, HDMI, SDI, VGA, YPbPr
Weiterführende Links zu "XI100XUSB-PRO PnP"
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "XI100XUSB-PRO PnP"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Specifications

Specifications XI100XUSB-PRO PnP Video Capture Device

Connection
Host Interface USB3.0, *300-350MB/s throughput
USB2.0, *40MB/s throughput
Input Interface 1 DVI-I interface (can connect to HDMI, VGA, YPbPr)
1 BNC interface (can connect to SD/HD/3G-SDI)
1 DB9 interface (to YPbPr, S-Video, CVBS,1 unbalanced stereo audio line in)
DVI Input 1 1080p/60Hz HD DVI signal
HDMI Input 1 1080P/60Hz HDMI signal
SDI Input 1 SD/HD/3G-SDI signal, it can reach 1080P/60Hz
VGA Input 1 VGA
YPbPr Input 2 YPbPr
CVBS Input 1 SD video signal
HDMI Audio Input 1 LPCM audio signal
SDI Audio Input 1 embedded SDI audio
Analog Audio Input 1 analog audio
Standard
DVI Input Formats It meets DVI 1.0 standard, single connection (480i, 576i, 480p, 576p, 720p, 1080i, 1080p)
HDMI Input Formats It meets HDMI 1.3 standard, support 36 bits DeepColor
SDI Input Formats SD/HD/3G-SDI, it meets standards of SMPTE-259/274/296/372/424/425/292
YPbPr Input Formats 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
VGA Input Formats 640x400—2048×1536 when the pixel is below 170MHz
CVBS Input Standard PAL/ NTSC
Output Format Resolution: 640×480 / 720×480 / 720×576 / 768×576 / 800×600 / 1024×768 / 1280×720 / 1280×800 / 1280×960 / 1280×1024 / 1368×768 / 1440×900 / 1600×1200 / 1680×1050 / 1920×1080 / 1920×1200 / 640×360 / 856×480 / 960×540
Frame rate: 15 / 25 / 29.97 / 30 / 50 / 59.94 / 60 fps
Audio and video capture support UVC (USB video class), UAC(USB audio class) protocol
Video sampling rate CVBS: 57.27MHz (4x Oversampling)
RGB /YPbPr: 170MHz
HDMI/ DVI: 225MHz
Color Space YUY2, NV12, I420, RGB24
Video Processing
Color space switch Hardware color switch
Image Scale Hardware scale
Image Adjustment Image adjustment including brightness, contrast, hue, saturation
Others
Operating System Support Support following operating systems (x 86 version or x64 version):
Windows 7
Windows Server 2008 R2
Linux (Kernel version 2.6.38 and above)
OS X (10.8 and above)
Software Compatibility Windows Media Encoder (Windows)
Adobe Flash Media Live Encoder (Windows, OS X)
Real Producer Plus (Windows)
VLC (Windows, OS X, Linux)
QuickTime Broadcaster (OS X)
QuickTime Player (OS X)
Wirecast (Windows, OS X)
Compatible development interface DirectShow (Windows), DirectSound (Windows),V4L2 (Linux), ALSA (Linux)
Onboard Memory 128MB DDR2, working rate is 160 Mhz, bit width is 32 bits
Update Firmware can be updated.
Size 98mm x 98mmx25mm (L/W/H)
Power Consumption <= 3.5W
Working temperature range 0-50 degree centigrade
Storage temperature range -20-70 degree centigrade
Storage humidity range 5%-90%
